- Place of Origin:CN;ZHE
- Brand Name:UWELD

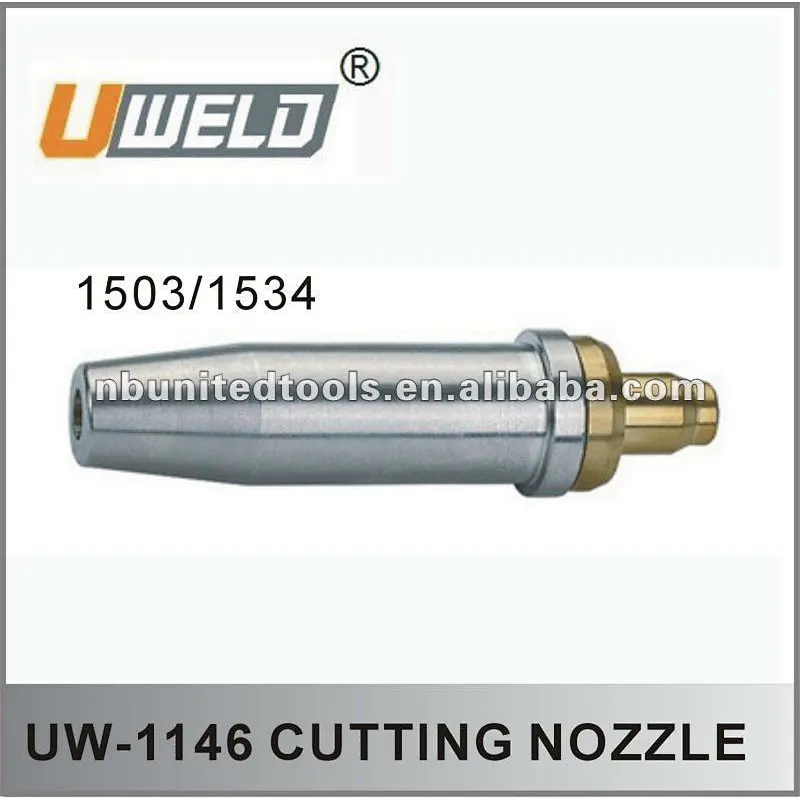

- Model Number:UW-1146
- Item:1503 Cutting Nozzle
| NODEL NO | SIZE | CUTTING | OXYGEN | ACETYLENE |
| CAPACITY | REPSSURE | PRESSURE | ||
| mm | mm | mpa | mpa | |
| 2 | 0.5 | 3 | 0.2-0.3 | 0.034-0.068 |
| 3 | 0.8 | 6-10MM | 0.2-0.3 | 0.034-0.068 |
| 4 | 1 | 10-16mm | 0.2-0.3 | 0.034-0.068 |
| 6 | 1.5 | 16-25 | 0.2-0.3 | 0.034-0.068 |
| 8 | 2 | 25-127 | 0.25-0.35 | 0.034-0.068 |
| 10 | 2.5 | 127-250 | 0.25-0.5 | 0.055-0.08 |
| 12 | 3.05 | 250-300 | 0.4-0.55 | 0.068-0.082 |
1503 cutting nozzle,2# 60 16# are available, cutting capacity up to 400mm
Send Message
Related Products
Model NO. 1C001-0013

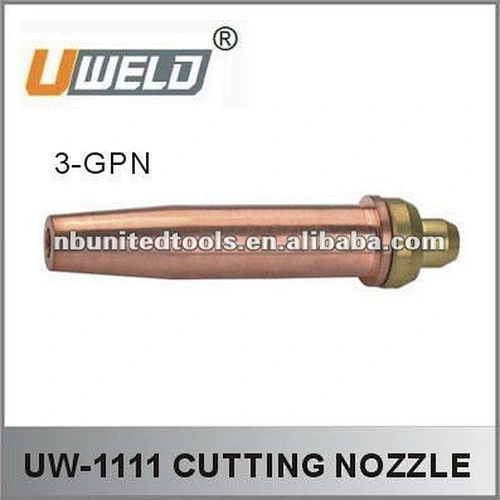

Model NO. UW-1111

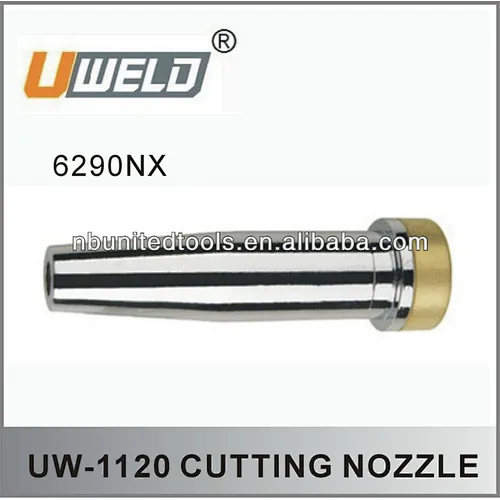

Model NO. UW-1120

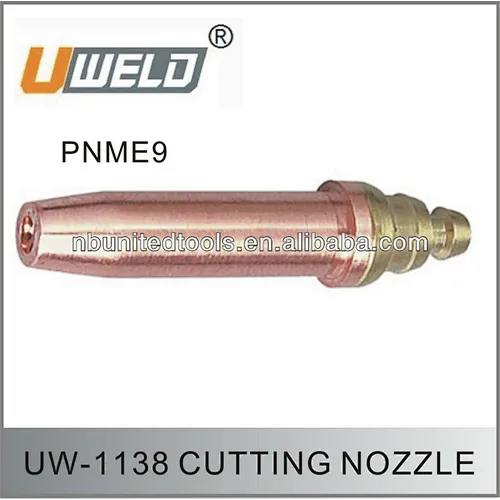

Model NO. UW-1138

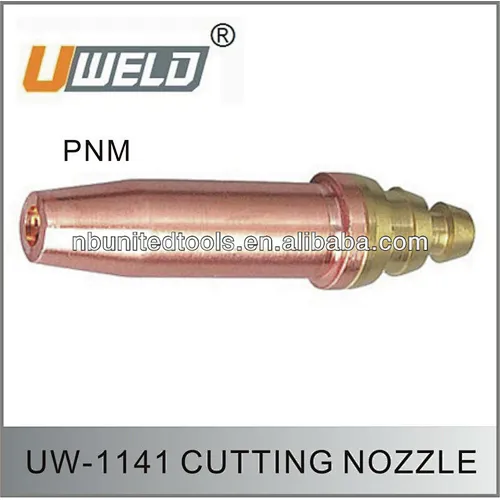

Model NO. UW-1141

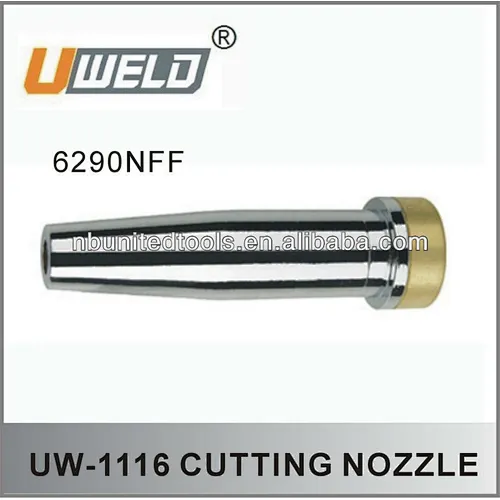

Model NO. UW-1116

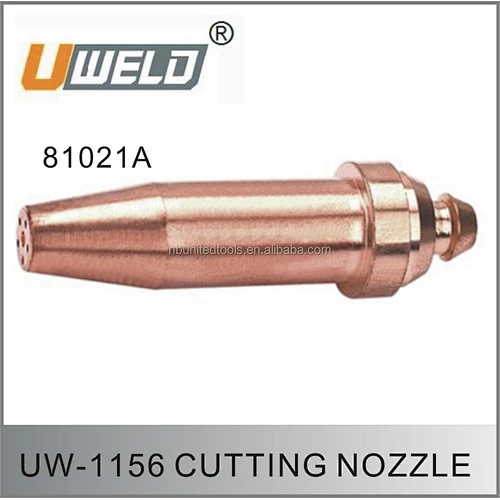

Model NO. 81021A

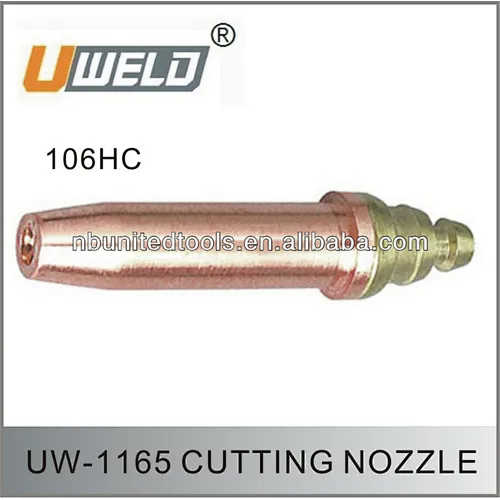

Model NO. UW-1165
