- Place of Origin:CN;ZHE
- Brand Name:UWELD
- Model Number:uw1302
- name:flashback arrestor

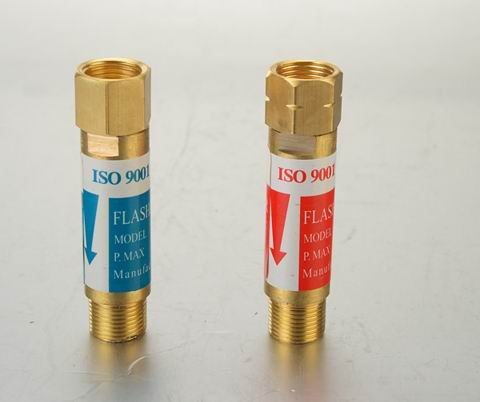

288 Type Flashback arrestor
1 regulator flashback arrestor
2 filter protect the flashback arrestor from the dirty particles
3 prevent the transmission of flame of backfire or flashback upstream from the blow-pipe passing through the flashback arrestor into the equipment connected
4 Max flow:oxygen:7000Lt./h
acetylene:2600Lt./h
| Model | Gas | For | Max Flow | Max Inlet | Inlet | Outlet |
| Lt./H | Pressure(bar) | |||||
| 288-R | oxygen | Regulator | 7000 | 10 | 9/16"x18 R.H. | 9/16"x18 R.H. |
| 288-L | fuel gas | 2600 | 1.5 | 9/16"x18 L.H. | 9/16"x18 L.H. |

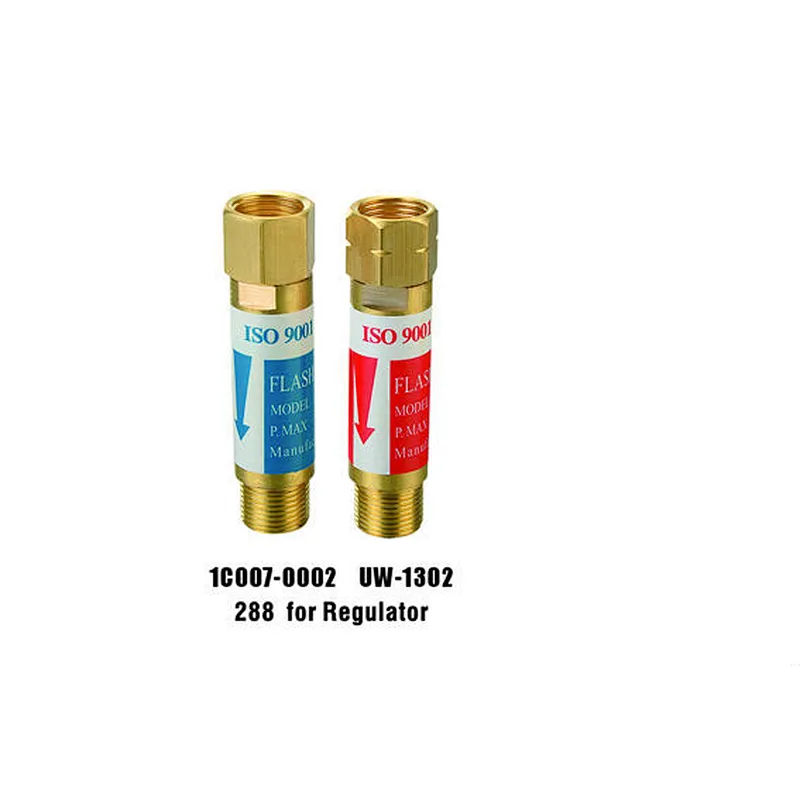

288 type for regulator
