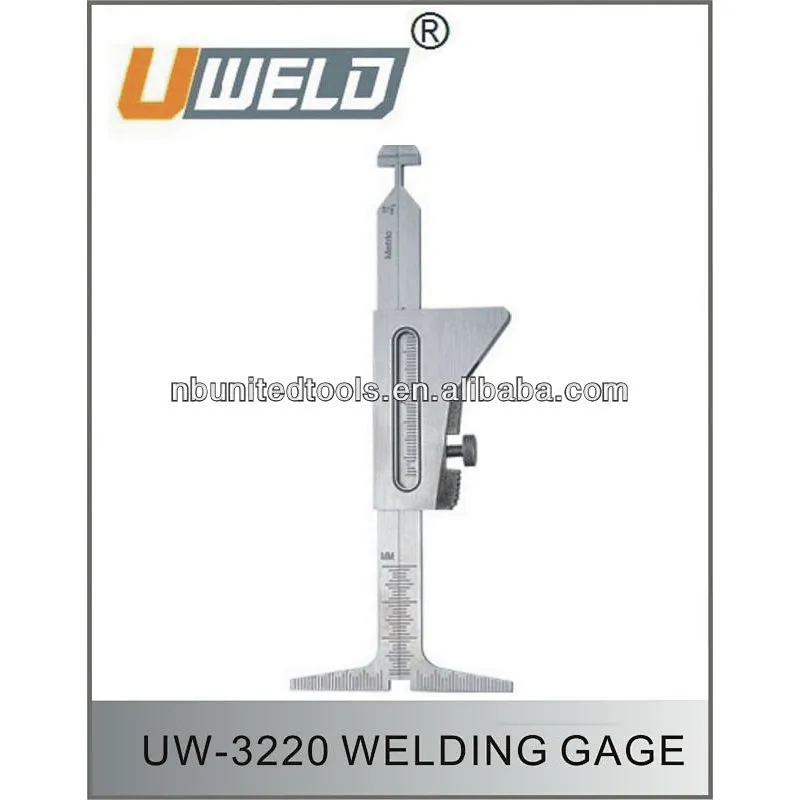

steel welding gauge

• Place of Origin:CN;ZHE
• Brand Name:UWELD
• Model Number:UW-3220
• Decripetion:Welding Gauge
• Material:Steel
• used for:Welding inspection

Welding Gauge

Changes from Standard to Metric, simply remove gauge body, turn scale over replace body.

Measure internal misallgnment

Measure fit-up gap

Measure bevel on end preparation

Measure the crown height of butt welds

Measure fillet weld size

Measure scribe ine,socket welds

Measure pipe wall thickness

Can be calibrated to NBS standard
